PCB Layout

We provide FAST & RELIABLE PCB layout services that always fit your budget. We calcualte your layout by pin Qty. mostly. So you know exactly how much the layout work will cost you by simply adding up the pins.

PCB Reverse Engineering

We will reverse the PCB sample received to the three engineering files - PCB gerber/BOM list/Schematic Diagram. The files are able to be used for PCB hardware learning, redesign or re-production.

Hardware Solutions

Simplify your design process by using our exisiting hardware solutions. With some modifications, you are able to launch your product with the minimized cost. Now we've had solutions covering wireless, wirelss charging, sensor data processing & transmission, and more.

PCB Design

We also offer PCB design sevices for scratch. We will help you complete your product from your requirements to the approved PCB prototypes with the optimized cost for manufacturing

applicant Senario Based
Hardware Solutions

Hardware Solutions

Simplify your design process by choose from applicant senario based hardware design from our exisiting solutions.

With a few more modifications, you are able to launch your product with the extended functionality and minimized cost.

Now we’ve had mature hardware solutions integrated with the corresponding firmwares that covers from:

1. Wireless (2.4G / Bluetooth / 433Hz)

2. Wirelss charging

3. Power Management

4. Sensor data processing & transmission

… and more.

Learn More

Wireless

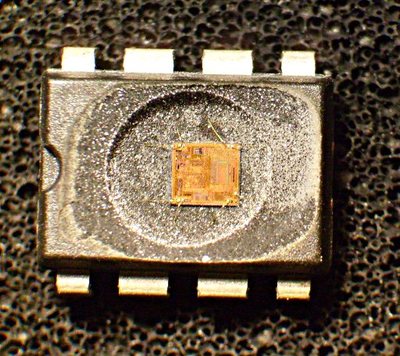

IC Unlock is also known as IC Crack, IC Attack or IC Decryption. Normally, ICs of the final products are encrypted. IC Crack procedure is to decrypt the IC through the specialized equipments and approaches. The program of ICs will be readable by programmer after IC crack.

Learn More

IC Unlock

PCB Cloning made easy

What We Offer

Fast PCB Studio is the expertise on providing full intergrated services from PCB reverse engineering, PCB re-design, IC unlock, to the completed PCBA prototype, testing, debug & mass production

Send Message

PCB Cloning Procedures

#1 - IC Unlock
Extract the IC program 25%
#2 - PCB Reverse Engineering
Get Gerber file, BOM list & Schematics From PCB Sample 50%
#3 - PCB Prototype
Build New Boards By Using the Extract IC Program & PCB Files 75%
#4 - Prototype Testing
Check the Function of the New Board, Fix incompatibility & Debug other errors. Update New Corrections into PCB files 100%
Learn More About PCB Cloning

one stop pCB Design & production

We're biased... Read what our customers say

0 +
Customers Globally
We chose Fast PCB Studio as they offer the full solution from PCB reverse engineering to PCB assembly. We revised our design 10+ times,They were really nicely helped us with layout suggestions to minimize PCB manufacturing cost. They did fatanstic job. Now our product started mass production. We may use their services again in the short future for our coming project.



John Doe
PCB Hardware Engineer - USA
5/5
We were designing a tablet for outdoor uses. The design of the tablet itself was a bit complex, and we would need to further add outdoor features which made the task even more complex. So we sent 2 sample boards to Fast PCB Studio for reverse engineering. One of the sample was a 14 layer boards. Schematics and other engineering files were submitted in 14 days. The prices were very reasonable, and the drawings were 100% acurate. The technical team was very supportive on our request to convert the file format for our conveniences, as well as to the other general requests as well. I was quite happy working with them. They did great work to help on our new tablet design project.
Steve Hoyer
Product Manager - Germany
5/5
We've been working with Fast PCB Studio for many projects on both IC unlock, and PCB cloning. They provided good prices, reliable outcomes and timely services consistantly since the first time we made order to them. Everything else was perfect, just sometimes, the sample deliveries were delayed due to the China custom. A small project may only take 1 week to complete, but the sample shipping to them could be delayed a week or more. They were very supportive to actively contact the courier companies, and to facilitate the custom clearance every time. Thank to their good services, so all the samples are arrived without any issue. Will keep working with them for future projects.
Mohammad Darivand
Hardware Engineer - UAE
4.5/5

Why Us

Fast PCB Studio  is one of the   Leading PCB Copy & IC Unlock service provider in Dongguan, China. We are dedicated to provide our clients the very reliable & cost effective Full solution for Electronic Reverse Engineering & Production.

(1) Under normal circumstances, the single-layer and double-layer board take upto 3-5 working days, the 4-6 layer board  takes  upto  7 to 12 workding days, and the 10+ layer board takes upto 12 to 15 working days. The multilayer board depends on the complexity of the circuit board;
(2) We have strong R&D  resources  and strong R&D support team in Beijing and Shenzhen, and we have our own talent training  tutorial from experienced PCB reverse engineered  in Shenzhen, which ensures 100% accuracy of PCB copy board;
(3) “To create a win-win situation with customers” is always our principle for  cooperation. Based on your specific requirements, we will  provide the most reasonable quotes in very short time, and would help to evaluate the cases from your pictures or samples  free of charge.
​
*We are   capable to generate the documents in various format with additional charge. In gerneral, we use software   Protel99/Se.

We not only focus on advanced technology, but also carry out quality management of the entire PCB production process, including excellent product design, high-quality materials, suitable equipment, mature production processes, skilled production personnel, and strict and meticulous inspection, storage, packaging and so on.

We have the strong networks for electronic products from reverse engineering to productions. Our partners empowered us to provide the full solutions  for  PCB copy, PCBdesign & Modification, prototype error fixing, IC decryption (As known as IC Unlock or IC Crack), IC procurement, high-precision  board production with state of art SMT  facilitise, PCB assembly testing (Including BGA X-ray testing)  and  turnkey services. We could also provide design for products according to customer requirements, including the re-design / modification for the development of the existing product on function improvement and technical optimization in some fields.

We support our customers the after-sell services for all the designs and the productions from us.

Get In Touch

Disclaimer: The use of our reverse engineering technologies is strictly limited within legal purposes, e.g. reproduce PCB artworks for old or obsolete printed circuit boards where the original is no longer available, PCB & Design tutorial or research and etc. Fast PCB Studio would not be responsible for any legal disputes for any inappropriate use of our technology on commercial competition, patent duplication or other prohibited use of reverse engineering technology by local laws.
